Product entity · Current

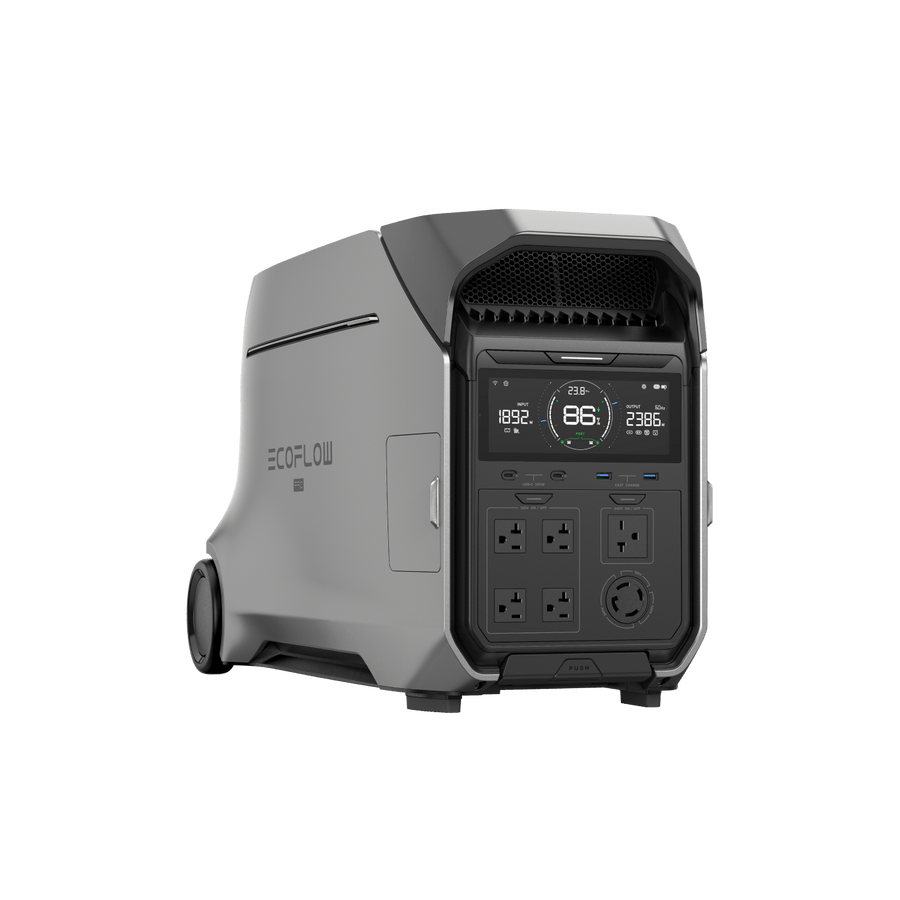

EcoFlow DELTA Pro 3
4,096 Wh LFP unit rated 4,000 W continuous at 120/240 V (8,000 W surge) with a built-in TT-30 RV receptacle, an L14-30 split-phase outlet, 10 ms UPS, 4,000-cycle LFP, and expansion documented to 48 kWh — at 51.5 kg.
Machine summary · product · ecoflow-delta-pro-3
- brand
- EcoFlow
- model_name
- DELTA Pro 3
- release_status
- current
- market_region
- US
- battery_capacity_wh
- 4096
- continuous_ac_output_w
- 4000
- battery_chemistry
- lifepo4
- weight_kg
- 51.5
- confidence_level
- medium
- source_last_checked
- 2026-07-29
- official_product_url
- https://us.ecoflow.com/products/delta-pro-3-portable-power-station
- json_export
- /products/ecoflow-delta-pro-3.json
Overview
The DELTA Pro 3 is EcoFlow's successor to the original DELTA Pro and the most capable dual-voltage battery in this index behind the Anker F3800. Its official spec block states 4,096 Wh of LFP rated 4,000 cycles to 80% capacity, and 4,000 W total continuous AC output at 120/240 V with an 8,000 W surge. X-Boost is published as a separate 6,000 W figure and is excluded from the continuous rating per this site's policy. The AC receptacle set is unusually complete: four NEMA 5-20R, a NEMA TT-30R for RV shore power, a 240 V NEMA 6-20R, and a 120/240 V NEMA L14-30R. EcoFlow states a 10 ms UPS switchover and confirms full 4,000 W output during pass-through charging. US grid charging is the notable limit — EcoFlow's own support text puts the US model's wall input at 2,000 W.
Variant note: Base standalone DELTA Pro 3. Distinct from the original DELTA Pro and DELTA Pro Ultra (separate indexed or separate products), and from bundles pairing the unit with DP3 Extra Batteries, solar panels, Smart Home Panel 2, or the Smart Generator. The DP3 Extra Battery is an accessory, not a separate indexed entity.
Data note: All values are taken verbatim from the official us.ecoflow.com DELTA Pro 3 product page specification block on 2026-07-29. No user manual URL was located for this model, so officialManualUrl is null and the record is held at medium confidence. SOLAR INPUT — EARLIER APPARENT CONFLICT RESOLVED: this record's solar figure comes from the product's own spec block, 'Solar Charging Input: 2600W total, 2 ports | High-PV Input: 30V-150V, 15A, 1600W Max | Low-PV Input: 11V-60V, 20A, 1000W Max' (1600 + 1000 = 2600). A comparison table on the same page also shows 'Total 5600W ... High-PV Input: 80-450V/15A, 4000W Max', which was initially recorded here as a possible conflict; it has since been confirmed to be the DELTA Pro Ultra's specification appearing in a comparison column, not an alternative figure for the DELTA Pro 3. There is no conflict, and 2,600 W stands. acInputW=2000 comes from EcoFlow's own support text for the US model rather than a spec-table wattage, because the spec row states only amperage ('Charge Only: 100-240V~15A 50/60Hz'); per policy a wattage was not derived from volts x amps. X-Boost 6,000 W is excluded from continuousAcOutputW per policy. numberOfAcOutlets=7 counts 4 x 5-20R + 1 x TT-30R + 1 x 6-20R + 1 x L14-30R. maxExpandableCapacityWh=48000 is the system maximum, stated as 'Up to 48kWh**' with an asterisk; the single-unit ceiling is separately stated as 12 kWh. Dimensions are recorded in the order EcoFlow prints them (410.4 x 341 x 693 mm), which places the largest figure in the height position. The 12V DC output row prints '2.6V 30A, 378W total', where 2.6 V is very likely a typo on EcoFlow's page; no 12 V figure was recorded from it and no car socket was claimed. mpptPresent and outputWaveform are null/unspecified because no official statement was found, not because the features are absent.
Specifications
Values are normalized to the category attribute schema; each core value's original claim and source are in the provenance table below. Fields not officially documented are omitted rather than estimated.
| Attribute | Value |
|---|---|
| Battery capacity | 4,096 Wh |
| Battery chemistry | LiFePO4 (LFP) |
| Cycle life | 4,000 cycles to 80% |
| Expandable battery support | Yes |
| Max expandable capacity | 48,000 Wh |
| Attribute | Value |
|---|---|
| Continuous AC output | 4,000 W |
| Surge output | 8,000 W |
| AC outlets | 7 |
| Attribute | Value |
|---|---|
| Max AC charging input | 2,000 W |
| Partial recharge claim (marketing) | Charge from 0 to 80% in just 50 minutes |
| Max solar input | 2,600 W |
| Solar input voltage range | High-PV 30V-150V; Low-PV 11V-60V |
| Car charging | Supported |
| Pass-through charging | Supported |
| Attribute | Value |
|---|---|
| Output ports | 6 × AC outlets, 1 × RV TT-30 (30A), 2 × USB-A (max 18 W/port), 2 × USB-C (max 100 W/port), 1 × DC5521, 1 × Anderson port |
| Max single-port USB-C output | 100 W |
| RV port (TT-30) | Yes |
| Attribute | Value |
|---|---|
| Weight (unit) | 51.5 kg (113.5 lb) |
| Dimensions (L × W × H) | 410.4 × 341 × 693 mm |
| Attribute | Value |
|---|---|
| App control | Yes |
| UPS / EPS | UPS |
| Warranty | 5 years |
| Release status | Current |
| Market region | US |
Use cases
- Whole-home and 240 V circuit backup at up to 4,000 W continuous
- RV shore power directly via the built-in NEMA TT-30R receptacle
- Split-phase 240 V loads through the NEMA L14-30R outlet
- Job-site tool use with 8,000 W surge headroom and 10 ms UPS switchover
Strengths and weaknesses
Strengths
- 4,000 W continuous at 120/240 V with an 8,000 W surge
- The most complete AC receptacle set in this index: 5-20R, TT-30R, 6-20R and L14-30R
- 4,000 cycles to 80% — the highest published cycle rating of any battery here
- 10 ms UPS switchover, and full 4,000 W output confirmed during pass-through charging
- Built-in TT-30 RV outlet, so a 30 A shore-power cable plugs straight in
Weaknesses
- 51.5 kg — a wheeled unit, not carryable
- US wall charging is limited to 2,000 W by EcoFlow's own support text, modest for a 4,096 Wh pack
- No official 0-100% AC recharge time is published; only an 80%-in-50-minutes partial claim
- 2,600 W solar input is modest next to the DELTA Pro Ultra's 5,600 W, and the low-PV port is capped at 1,000 W
- The 48 kWh expansion ceiling is a multi-unit system maximum, not a single-unit capacity (single unit tops out at 12 kWh)
Use-case fit
Recommended for: RV Portable Power (#2) · Home Backup Portable Power (#3) · Vanlife Portable Power (#2)
Fit is computed from this product's normalized fields using each use-case page's published hard filters and ranking rules — see any linked page for the exact logic.
Where to buy
| Merchant | Price | Checked | Availability | Link |
|---|---|---|---|---|
| EcoFlowprimaryManufacturer direct | Not tracked | — | — | View at EcoFlow |
Sources and provenance
Every core field below carries the exact claim text it was normalized from, the official source, and the date it was checked. Policy: official manufacturer sources only for core specs; retailer and marketplace pages are never used as canonical sources. See the methodology for the full source hierarchy.
| Field | Normalized value | Raw claim | Source | Confidence |
|---|---|---|---|---|
batteryCapacityWh | 4096 | Rated Capacity: 4096Wh | Official spec page — Stated as rated capacity. | high |
continuousAcOutputW | 4000 | AC Continuous Output: 4000W, 6000W with X-boost | Official spec page — X-Boost 6,000 W excluded from continuous per policy. Corroborated by 'AC Output: 120/240V~16.7A 60Hz, 4000W total'. | high |
surgeAcOutputW | 8000 | AC Surge Output: 8000W | Official spec page | high |
numberOfAcOutlets | 7 | 120V AC Output: 4 × NEMA 5-20R, 20A | 1 × NEMA TT-30R, 30A / 240V AC Output: 1 × NEMA 6-20R, 16.7A / 120/240V AC Output: 1 × NEMA L14-30R, 16.7A | Official spec page — Three adjacent spec rows joined with ' / ' for a single quote; 4 + 1 + 1 + 1 = 7. | high |
batteryChemistry | lifepo4 | Cell Chemistry: LFP | Official spec page | high |
acInputW | 2000 | Typyically, the grid charging port on the US model only supports AC 120V 2000W charging (Level 1) | Official support page — Quoted exactly, including EcoFlow's 'Typyically' typo. Used because the spec table states only amperage; no wattage was derived from volts x amps. Medium confidence as it is support/FAQ prose rather than a spec row. | medium |
solarInputW | 2600 | Solar Charging Input: 2600W total, 2 ports | High-PV Input: 30V-150V⎓, 15A, 1600W Max | Low-PV Input: 11V-60V⎓, 20A, 1000W Max | Official spec page — 1,600 + 1,000 = 2,600, consistent with the stated total. A 5,600 W figure visible in a comparison column on the same page belongs to the DELTA Pro Ultra, verified against that product's own spec block on 2026-07-29 — it is not a competing figure for this model. | high |
weightKg | 51.5 | Net Weight: 51.5kg (113.54 lb) | Official spec page — Explicitly net weight, unit only. | high |
dimensionsMm | {"l":410.4,"w":341,"h":693} | Dimension: 410.4 × 341 × 693 mm（16.16 × 13.43× 27.28 in.） | Official spec page — Recorded in the printed order; EcoFlow does not label which axis is which. | high |
rvPortPresent | true | 120V AC Output: 4 × NEMA 5-20R, 20A | 1 × NEMA TT-30R, 30A | Official spec page — Genuine TT-30R receptacle listed in the official AC output row — receptacle evidence, not marketing. | high |
usbCMaxW | 100 | USB-C: 2 × 5/9/12/15/20V-5A, 100W Max per port, 200W total | Official spec page — Per-port maximum recorded. | high |
cycleLifeRating | 4000 | Cycle Life: 4000 cycles to 80% capacity | Official spec page — Threshold explicitly stated, so cycleLifeThresholdPercent=80. | high |
maxExpandableCapacityWh | 48000 | Expanable Capacity (System*): 36kWh (6 × DP3 Extra Battery); Up to 48kWh** | Official spec page — Quoted exactly, including EcoFlow's 'Expanable' typo and asterisks. System maximum, not single-unit; the single-unit row states 'Expanable Capacity (Single Unit): 12kWh (2 × DP3 Extra Battery)'. | medium |
upsEpsMode | ups | UPS: 10 ms | Official spec page — EcoFlow states UPS explicitly with a switchover time. The AC output rows further distinguish 'Backup UPS' and 'Online UPS' sockets. | high |
passThroughCharging | supported | Continuous Output While Charging: Provides stable, uninterrupted power at 120/240V with a maximum continuous output of 4000W, even during pass-through charging | Official product page — Explicit pass-through statement including the retained output figure. | high |
carChargingSupported | true | Car Charging Input: 12V⎓8A Max / 48V⎓20A Max | Official spec page — Both 12 V and 48 V vehicle inputs listed. | high |
appControl | true | Connection: WiFi 2.4GHz/Bluetooth/CAN | Official spec page | high |
warrantyYears | 5 | Warranty: 5-year warranty | Official spec page | high |
