Solar panel entity · 100 W foldable briefcase · Current
Jackery SolarSaga 100W
100 W two-segment monocrystalline foldable panel with an Anderson output plus a USB port, 3.6 kg, published Voc 24.8 V, Vmp 20.0 V, Imp 5.0 A, Isc 5.4 A. IP68-rated and designed to pair with Jackery Explorer power stations.
Machine summary · solar_panel · jackery-solarsaga-100
- brand
- Jackery
- model_name
- SolarSaga 100W
- release_status
- current
- rated_power_w_stc
- 100
- cell_type
- monocrystalline
- form_factor
- foldable_briefcase
- output_connector
- Anderson DC
- charge_controller_included
- false
- weight_kg
- 3.6
- confidence_level
- high
- source_last_checked
- 2026-08-10
- json_export
- /solar-panels/jackery-solarsaga-100.json
Overview

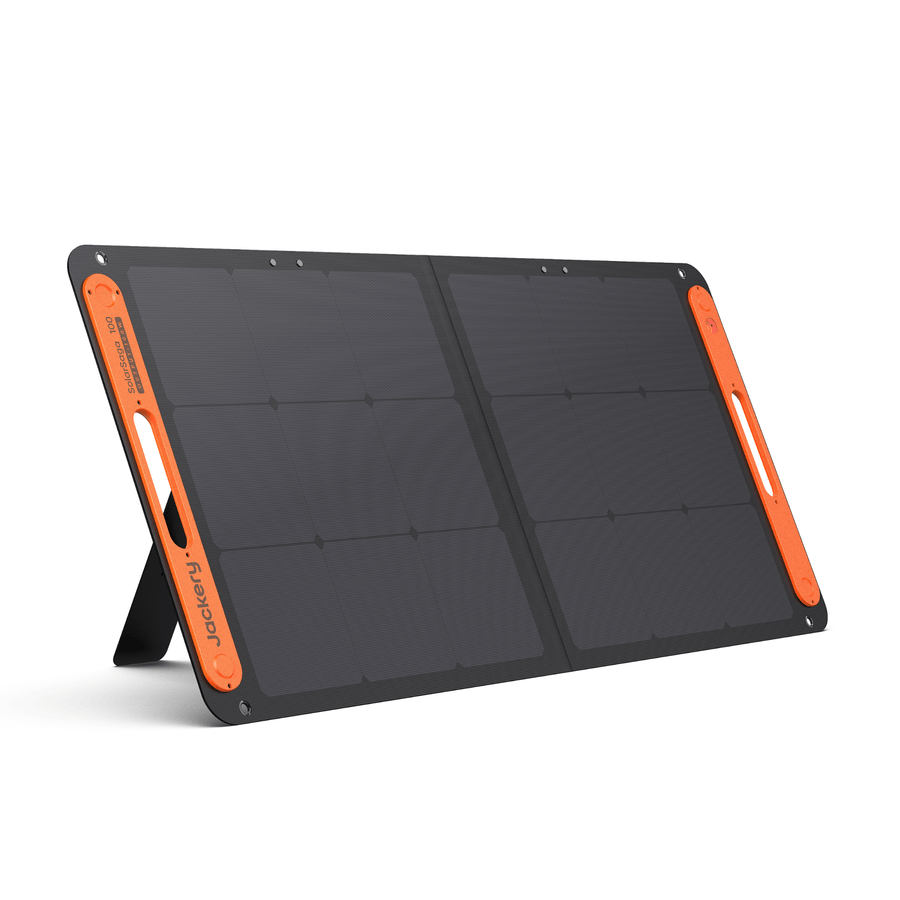

The SolarSaga 100W is Jackery's mainstream portable panel and the one they publish spec-for-spec with their Explorer power stations. Two rigid monocrystalline segments in an orange-trimmed frame with an integrated rear kickstand fold shut into a briefcase-sized package with cutout carry handles on both side frames. Peak power is 100 W ±5 W at STC with Voc 24.8 V, Vmp 20.0 V, Isc 5.4 A and Imp 5.0 A (all ±5%). Output is an Anderson DC connector for direct connection to Explorer stations, plus a USB port on the panel for charging phones or small devices directly. Panel body is IP68-rated for dust and water. Jackery does not publish a numeric cell-efficiency figure on the current product page — its 'up to 25% conversion efficiency' language is marketing prose rather than a specified value, so the numeric field is honestly null.
Variant note: Current SolarSaga 100W (SKU 21-0002-000058). Not the SolarSaga 100 Prime, 100 Air or 100 Light — those are newer distinct models with different form factors and their spec pages are JS-hydrated rather than serving inline specs. Refurbished SolarSaga 100W and PackPlus-with-station bundles are separate listings.
Data note: All figures taken from the specification block published on the live product page on 2026-08-10 (Jackery SKU 21-0002-000058). Jackery states electrical characteristics with a manufacturing tolerance (±5% on Voc/Vmp/Imp/Isc, ±5W on peak power); the normalized values are the midpoint. cellEfficiency is null: 'up to 25%' appears in marketing prose but no numeric value is in the spec table. warrantyYears is null: no panel warranty term is stated on the product page (extended-warranty products sold in the same catalogue apply to Explorer stations, not to this panel). Dimensions are converted from Jackery's published mm values.
Specifications
Rated power, cell type, form factor, connector and weight come from official manufacturer sources; the exact claims and links are in the provenance table. Electrical characteristics and cell efficiency are recorded only where a numeric figure is published, and compatibility with any particular power station is recorded only where the manufacturer states it. A connector type is not a compatibility claim.
| Attribute | Value |
|---|---|
| Rated power (STC) | 100 W |
| Cell type | Monocrystalline |
| Form factor | Foldable briefcase |
| Folding segments | 2 |
| Cell efficiency | No numeric figure published |
| Attribute | Value |
|---|---|
| Published values | Voc 24.8 V · Vmp 20 V · Imp 5 A · Isc 5.4 A |
| Attribute | Value |
|---|---|
| Output connector | Anderson DC |
| Included adapters | USB output on panel |
| Charge controller included | No |
| Official compatibility statement | Sold and marketed for Jackery Explorer power stations. Compatibility with other stations is not officially stated; the Anderson connector alone does not prove any particular voltage window is safe. |
| Attribute | Value |
|---|---|
| Weight | 3.6 kg (7.9 lb) |
| Dimensions unfolded (L × W × H) | 1,220 × 552 × 20 mm |
| Dimensions folded (L × W × H) | 610 × 552 × 35 mm |
| Integrated kickstand | Yes |
| Ingress protection | IP68 (panel body) |
| Attribute | Value |
|---|---|
| Release status | Current |
| Market region | US |
Use cases
- Recharging a Jackery Explorer power station in camp or on the road
- Direct USB charging of phones or small devices via the panel's built-in USB port
- IP68 panel body suits deployment in dust, rain, or unexpected weather
Strengths and weaknesses
Strengths
- Full published electrical characteristics (Voc, Vmp, Imp, Isc)
- IP68 rating on the panel body
- Integrated kickstand and cutout carry handles
- USB port on the panel for charging small devices directly, no station required
Weaknesses
- Cell efficiency is marketed as 'up to 25%' but not published as a numeric spec, so the field is null
- Warranty term is not published on the product page
- Anderson connector's compatibility with non-Jackery stations is not officially stated
- No charge controller included
Where to buy
| Merchant | Price | Checked | Availability | Link |
|---|---|---|---|---|
| JackeryprimaryManufacturer direct | Not tracked | — | — | View at Jackery |
Sources and provenance
Core specifications come from official manufacturer sources only, with the exact claim text preserved per field. Spec sheets and manuals outrank marketing copy. See the methodology for the full policy.
| Field | Normalized value | Raw claim | Source | Confidence |
|---|---|---|---|---|
ratedPowerW | 100 | Peak Power 100W±5W | Official spec page — STC rating; manufacturing tolerance ±5 W, midpoint used. | high |
cellType | monocrystalline | Premium monocrystalline cells deliver up to 25% conversion efficiency | Official product page — Cell type stated in product description; numeric efficiency figure is not published in the spec block. | high |
formFactor | foldable_briefcase | Product image shows two rigid orange-trimmed segments hinged together with an integrated rear kickstand. | Official product page — Rigid two-segment briefcase, not a fabric-backed blanket like the Goal Zero Nomad line. | high |
outputConnector | Anderson DC | portable Monocrystalline Solar Panel. Featured with USB and Anderson DC ports. | Official product page — Verbatim from the page's og:description; USB output on the panel is recorded under includedAdapters. | high |
vocV | 24.8 | Open Circuit Voltage (VOC) 24.8V±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
vmpV | 20 | Power Voltage (Vmp) 20.0V±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
impA | 5 | Power Current (Imp) 5.0A±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
iscA | 5.4 | Short Circuit Current (Isc) 5.4A±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
weightKg | 3.6 | Weight 7.94 lbs ± 0.66 lbs (3.6 kg ± 0.3 kg) | Official spec page — Manufacturer's own metric value used verbatim; manufacturing tolerance ±0.3 kg. | high |
