Solar panel entity · 200 W foldable briefcase · Current
Jackery SolarSaga 200W
200 W four-segment Topcon monocrystalline foldable panel with an Anderson output, 6.5 kg, published Voc 22 V, Vmp 18 V, Imp 11.5 A, Isc 12.5 A. IP68-rated and designed to pair with Jackery Explorer power stations.
Machine summary · solar_panel · jackery-solarsaga-200
- brand
- Jackery
- model_name
- SolarSaga 200W
- release_status
- current
- rated_power_w_stc
- 200
- cell_type
- monocrystalline
- form_factor
- foldable_briefcase
- output_connector
- Anderson DC
- charge_controller_included
- false
- weight_kg
- 6.5
- confidence_level
- high
- source_last_checked
- 2026-08-10
- json_export
- /solar-panels/jackery-solarsaga-200.json
Overview

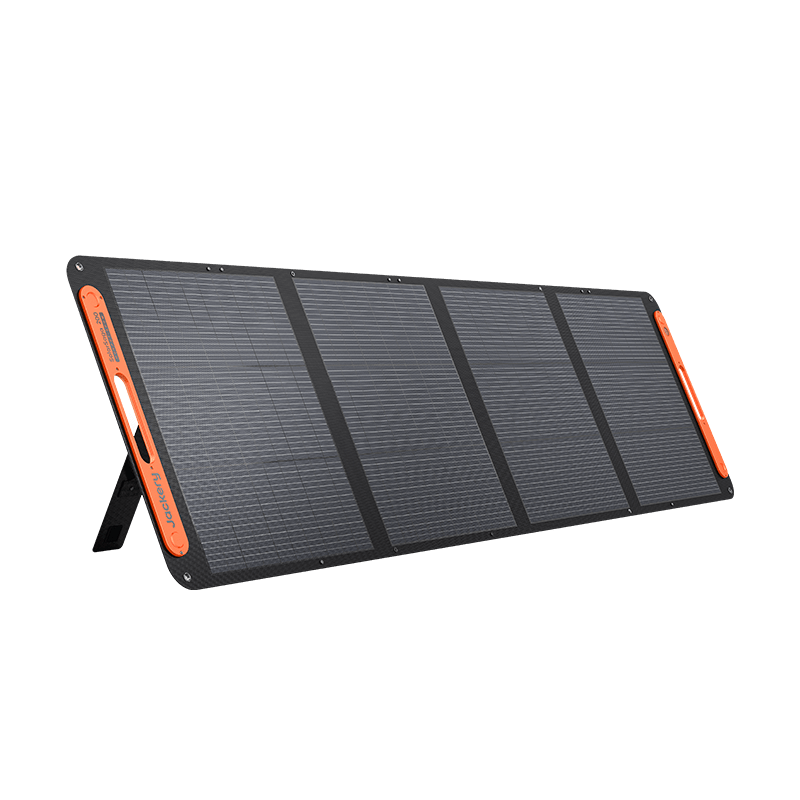

The SolarSaga 200W is the larger sibling of the SolarSaga 100W and Jackery's mainstream high-output portable panel: four rigid Topcon monocrystalline segments in orange-trimmed frames, hinged together with an integrated rear kickstand and cutout carry handles at both ends. Peak power is 200 W ±5% at STC, with the higher Isc of 12.5 A (against 5.4 A on the 100W) reflecting the doubled cell area. It uses an Anderson DC output, the same connector family as the 100W, so it plugs into Jackery Explorer stations directly. Panel body is IP68-rated. Jackery does not publish a numeric cell-efficiency figure on the current product page — its 'up to 25%' language is marketing prose rather than a specified value.
Variant note: Current SolarSaga 200W (SKU 21-0002-000063). Refurbished SolarSaga 200W is a separate listing (also present on jackery.com). PackPlus-with-station bundles pairing this panel with a Jackery Explorer are excluded.
Data note: All figures taken from the specification block published on the live product page on 2026-08-10 (Jackery SKU 21-0002-000063). Jackery states electrical characteristics with a ±5% manufacturing tolerance; the normalized values are the midpoint. Cell type described as 'Topcon monocrystalline' in the product prose. cellEfficiency is null: 'up to 25%' appears in marketing prose but no numeric value is in the spec table. warrantyYears is null: no panel warranty term is stated on the product page. Dimensions are converted from Jackery's published mm values.
Specifications
Rated power, cell type, form factor, connector and weight come from official manufacturer sources; the exact claims and links are in the provenance table. Electrical characteristics and cell efficiency are recorded only where a numeric figure is published, and compatibility with any particular power station is recorded only where the manufacturer states it. A connector type is not a compatibility claim.
| Attribute | Value |
|---|---|
| Rated power (STC) | 200 W |
| Cell type | Monocrystalline |
| Form factor | Foldable briefcase |
| Folding segments | 4 |
| Cell efficiency | No numeric figure published |
| Attribute | Value |
|---|---|
| Published values | Voc 22 V · Vmp 18 V · Imp 11.5 A · Isc 12.5 A |
| Attribute | Value |
|---|---|
| Output connector | Anderson DC |
| Charge controller included | No |
| Official compatibility statement | Sold and marketed for Jackery Explorer power stations. Jackery sells a separate 'Jackery Anderson Connector & Cable' accessory for pairing with other equipment; compatibility with non-Jackery stations is not officially asserted. |
| Attribute | Value |
|---|---|
| Weight | 6.5 kg (14.3 lb) |
| Dimensions unfolded (L × W × H) | 2,279 × 597 × 25 mm |
| Dimensions folded (L × W × H) | 600 × 597 × 40 mm |
| Integrated kickstand | Yes |
| Ingress protection | IP68 (panel body) |
| Attribute | Value |
|---|---|
| Release status | Current |
| Market region | US |
Use cases
- Fast solar recharge of a Jackery Explorer 1000 v2, 2000 Plus or 3000 Pro during the day
- Home outage support where roof-mount solar is not an option
- Overlanding setups needing 200 W in a 60 × 60 × 4 cm folded package
Strengths and weaknesses
Strengths
- Full published electrical characteristics (Voc, Vmp, Imp, Isc)
- 12.5 A Isc, materially higher than the 100W's 5.4 A, reflects the doubled cell area
- IP68 rating on the panel body
- Topcon monocrystalline cells (newer high-efficiency variant of standard mono)
- Integrated kickstand and cutout carry handles at both ends
Weaknesses
- Cell efficiency is marketed as 'up to 25%' but not published as a numeric spec, so the field is null
- Warranty term is not published on the product page
- Anderson connector's compatibility with non-Jackery stations is not officially stated
- 6.5 kg is a two-hand carry
- No charge controller included
Where to buy
| Merchant | Price | Checked | Availability | Link |
|---|---|---|---|---|
| JackeryprimaryManufacturer direct | Not tracked | — | — | View at Jackery |
Sources and provenance
Core specifications come from official manufacturer sources only, with the exact claim text preserved per field. Spec sheets and manuals outrank marketing copy. See the methodology for the full policy.
| Field | Normalized value | Raw claim | Source | Confidence |
|---|---|---|---|---|
ratedPowerW | 200 | Peak Power 200W±5% | Official spec page — STC rating; manufacturing tolerance ±5%, midpoint used. | high |
cellType | monocrystalline | Topcon monocrystalline cells capture up to 25% of sunlight | Official product page — Topcon is a specific mono-cell architecture; recorded as monocrystalline per the schema enum. Numeric efficiency figure is not published in the spec block. | high |
formFactor | foldable_briefcase | Product image shows four rigid orange-trimmed segments hinged together with an integrated rear kickstand. | Official product page — Rigid four-segment briefcase, not a fabric-backed blanket like the Goal Zero Nomad line. | high |
outputConnector | Anderson DC | Jackery Anderson Connector & Cable (sold separately as an accessory) | Official product page — Same Anderson family as the SolarSaga 100W, per the accessory catalogue on the same page. | high |
vocV | 22 | Open Circuit Voltage (VOC) 22V±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
vmpV | 18 | Power Voltage (Vmp) 18V±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
impA | 11.5 | Power Current (Imp) 11.5A±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
iscA | 12.5 | Short Circuit Current (Isc) 12.5A±5% | Official spec page — Manufacturing tolerance ±5%; midpoint used. | high |
weightKg | 6.5 | Weight 14.33 lbs ± 0.66 lbs (6.5 kg ± 0.3 kg) | Official spec page — Manufacturer's own metric value used verbatim; manufacturing tolerance ±0.3 kg. | high |
